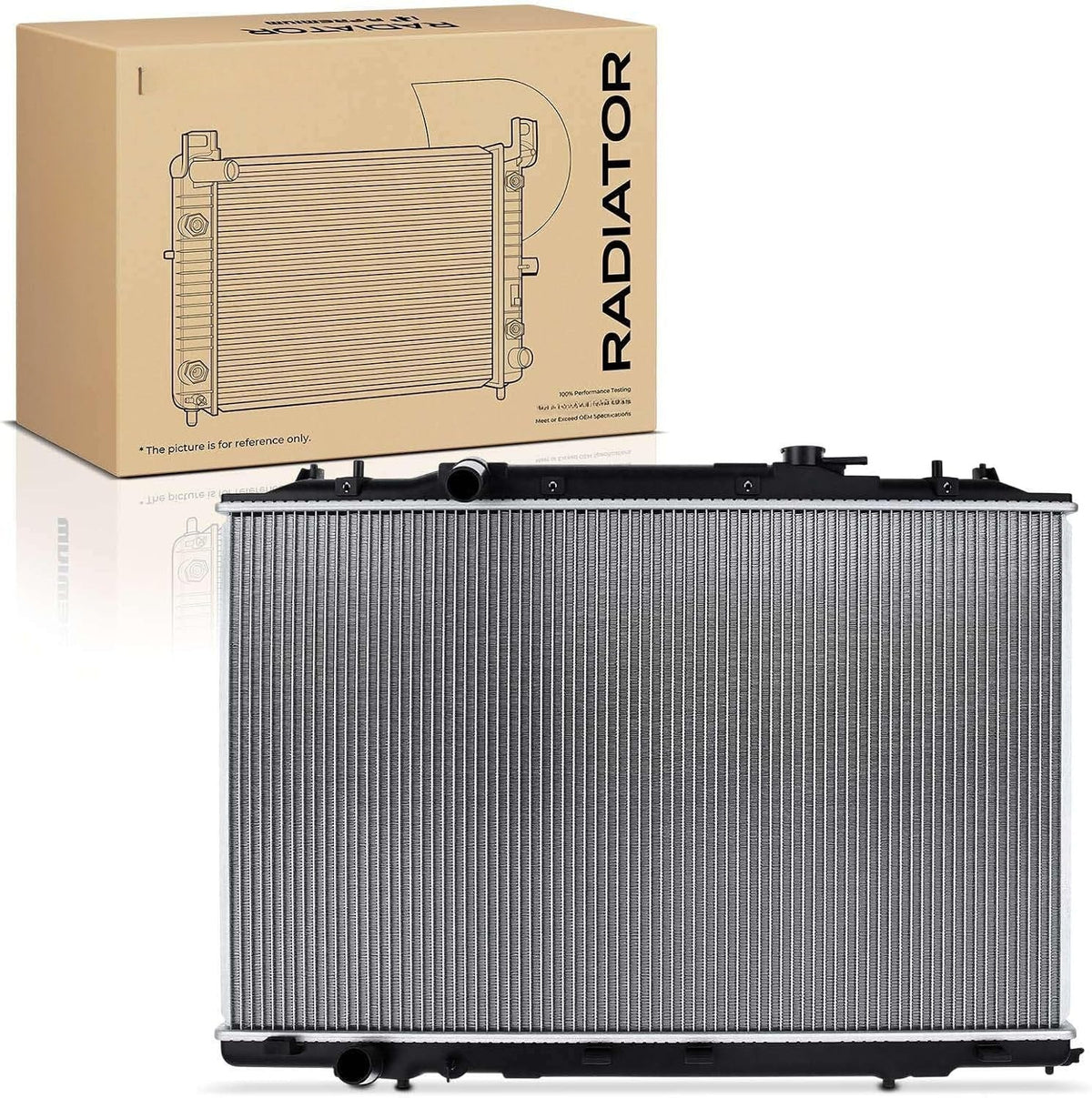

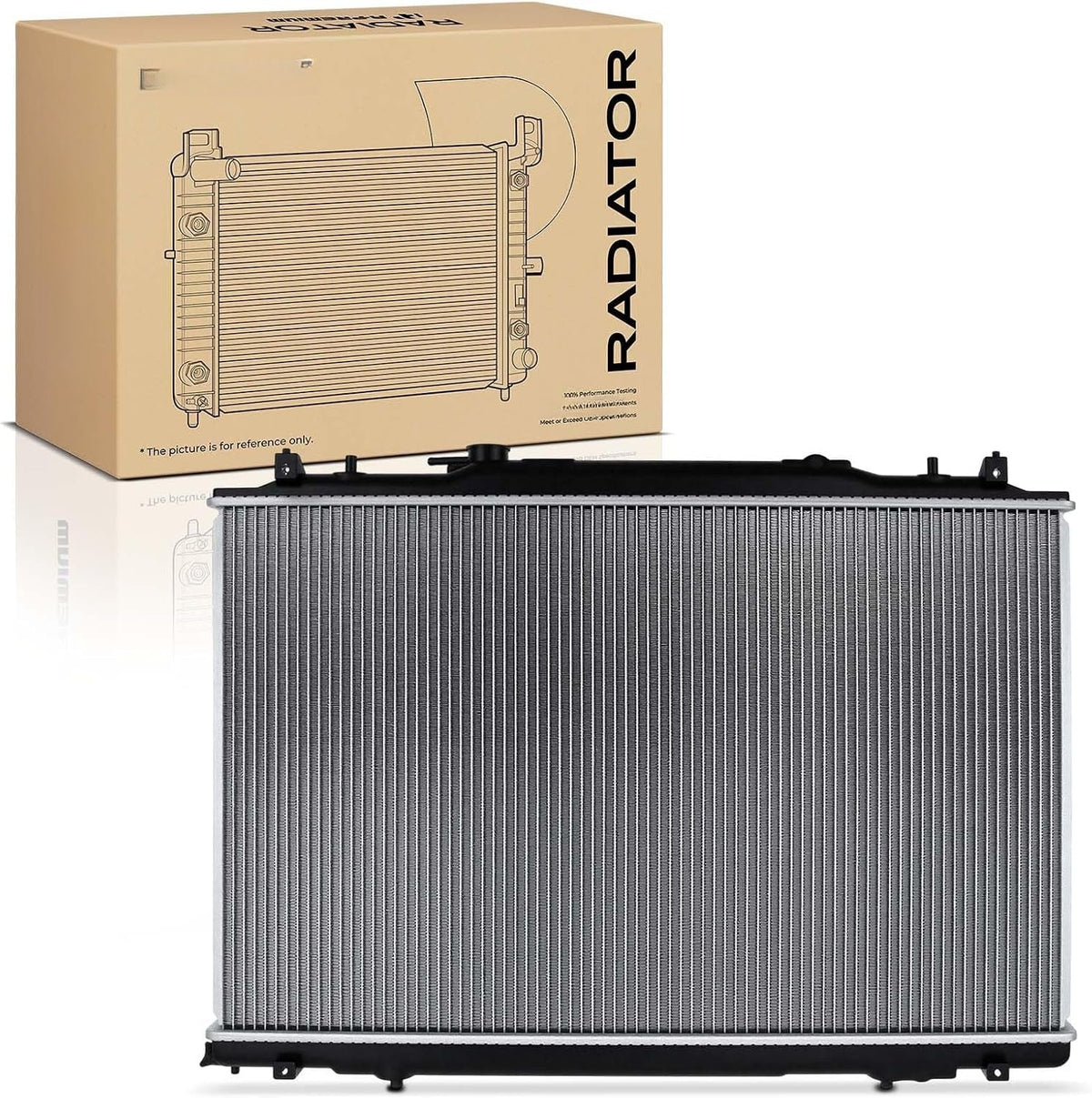

Engine Coolant Radiator for Honda Pilot 2016-2021, Ridgeline 2017-2022, Passport 2019-2021, Acura MDX 2014-2020, 3.0L 3.5L V6

This is an engine coolant radiator for the Acura MDX and Honda Pilot, Passport and Ridgeline with the V6 3.0L or 3.5L engine. The radiator removes heat from the engine coolant to keep the engine at a safe temperature. A failing radiator usually shows up as overheating, coolant leaks or puddles, a coolant level that keeps dropping, or steam and a sweet smell from the engine bay.

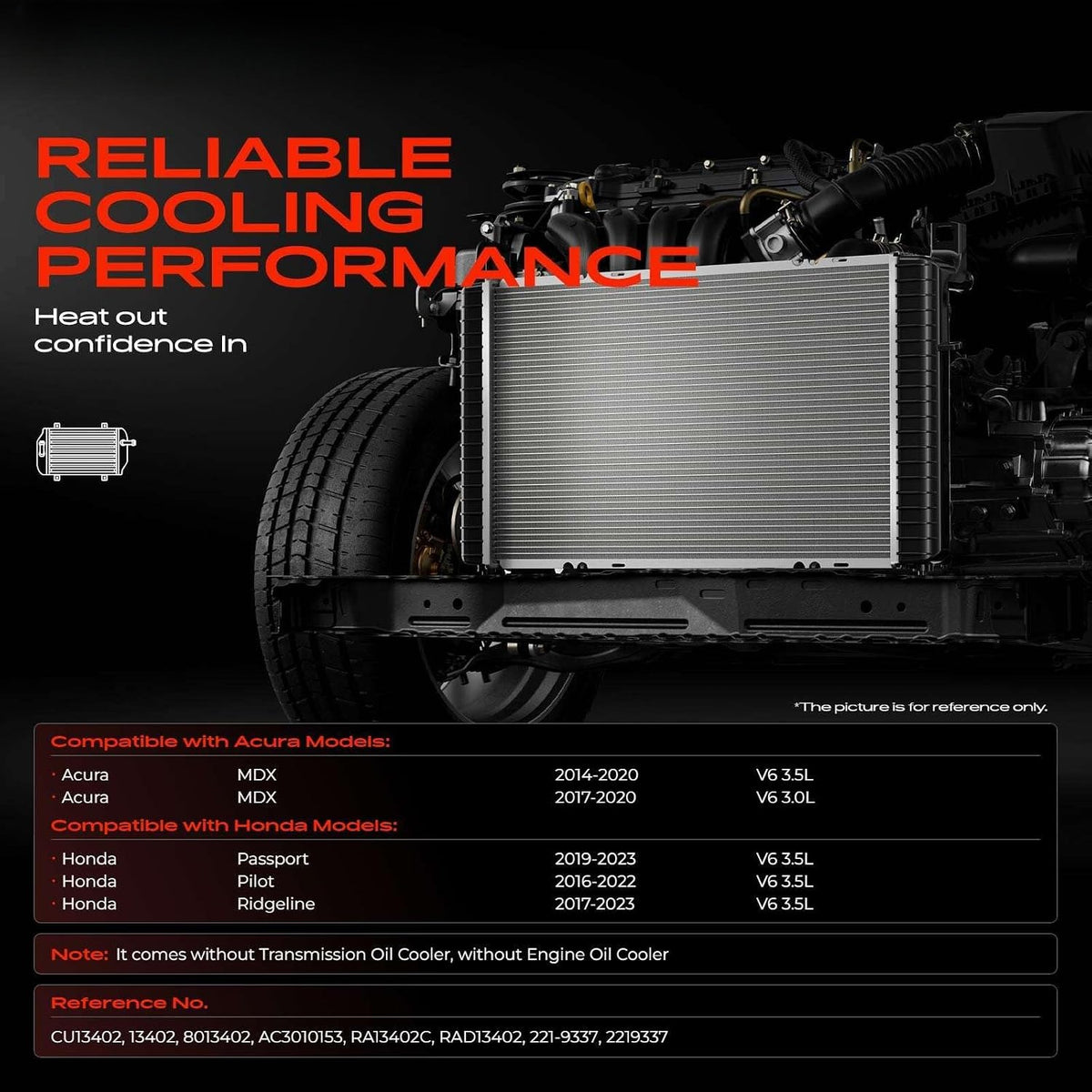

Vehicle Fitment

• Acura MDX 2017-2020, V6 3.0L; 2014-2020, V6 3.5L
• Honda Passport 2019-2021, V6 3.5L
• Honda Pilot 2016-2021, V6 3.5L
• Honda Ridgeline 2017-2022, V6 3.5L

Replaces Part Numbers

CU13402, 13402, 8013402, AC3010153, RA13402C, RAD13402, 221-9337, 2219337

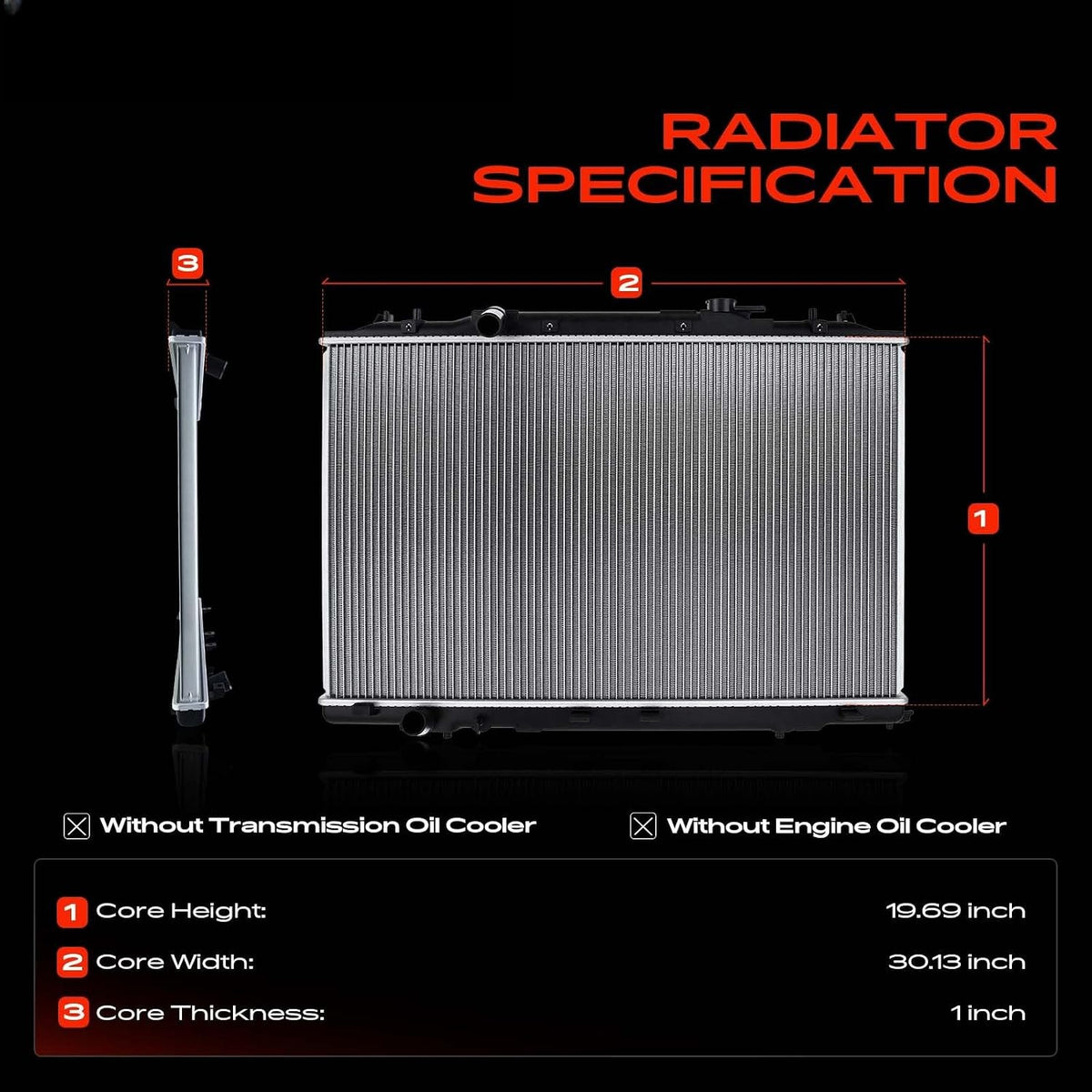

Specifications

• Transmission oil cooler included: No
• Engine oil cooler included: No
• Core height: 19-11/16 inch
• Core thickness: 1 inch
• Core width: 30-1/8 inch

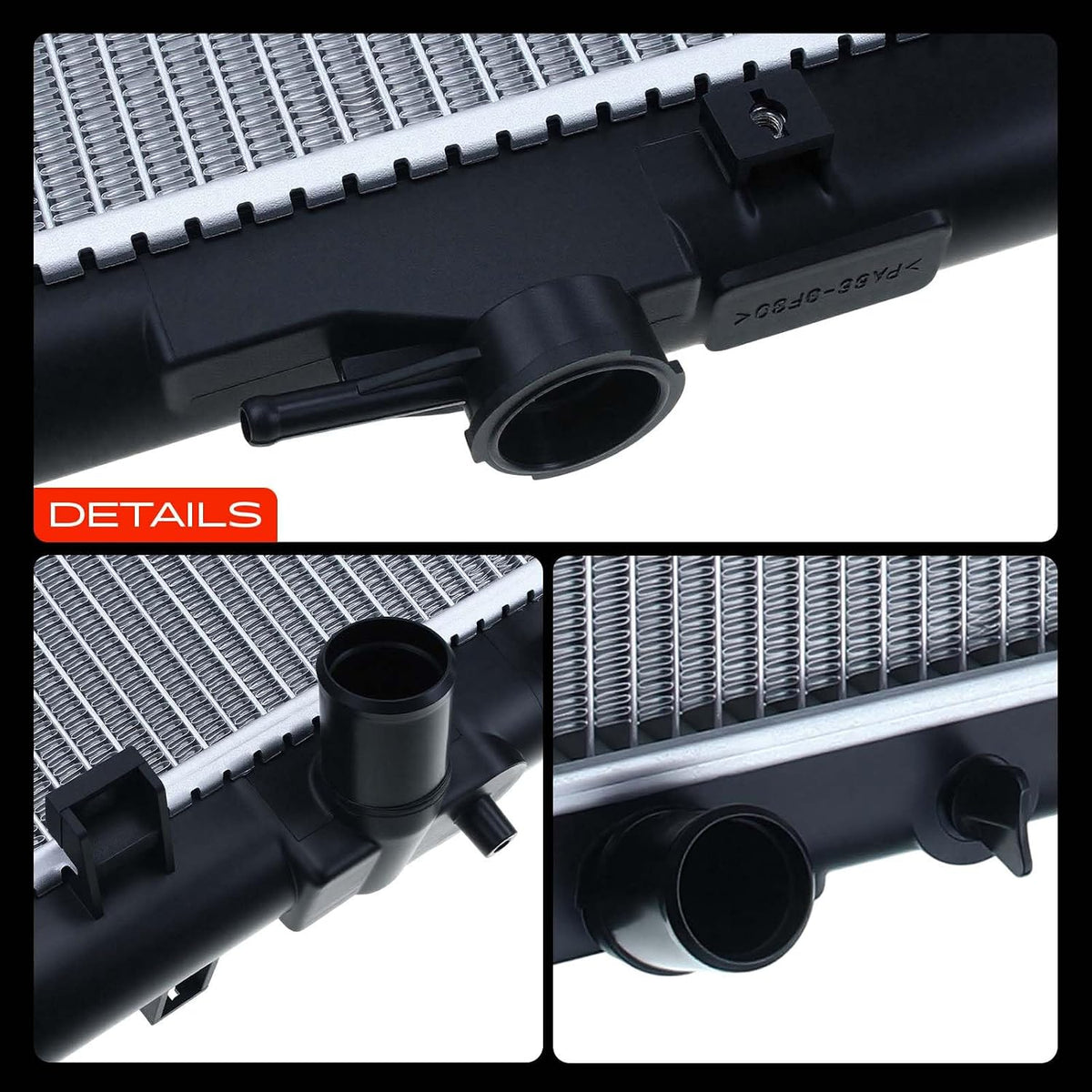

• Inlet diameter: 1-1/4 inch
• Outlet diameter: 1-1/4 inch

Before You Order

Match the part number above with the one on your old radiator, or send us your VIN and we will confirm fitment for you. Let the engine cool before draining the coolant, then refill and bleed the air from the cooling system after installation.
